San Bernardino National Forest
10 July 2006
As viewed by the FireMapper system
in reflected red, near-InfraRed and thermal-InfraRed light
|
Click on the image above to view a larger JPEG image
(opens a new browser window)

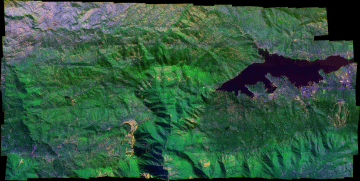

Current Image: False-color mosaic
This RGB image shows reflected red light at 650 nm in red, reflected NIR at 850 nm in green, and thermal IR at 8 - 12 um in blue as viewed from above on 10 July 2006.
|
|
|

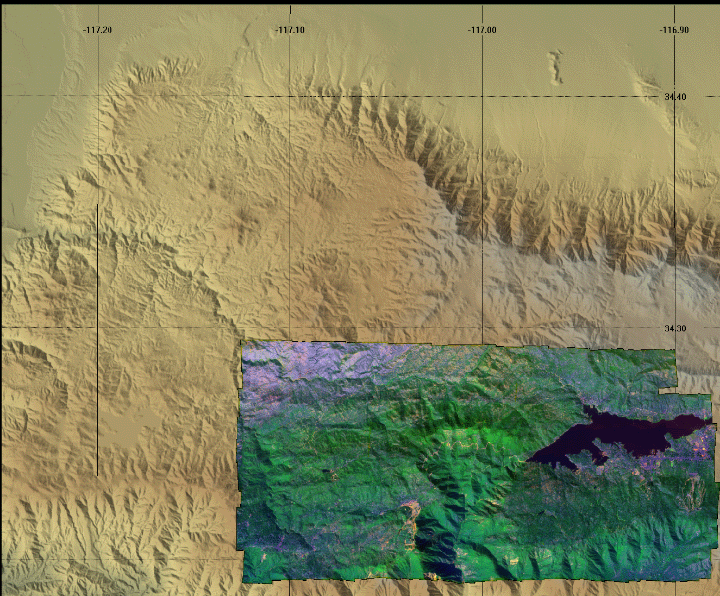

Image 1: False-color mosaic
Plan view of fire area. |
Click on the image above to view a larger Zoomify ( JPEG) image
(opens a new browser window)
Original image is 1.5 meters per pixel; JPEG is 3 meters per pixel resolution. |
|
|

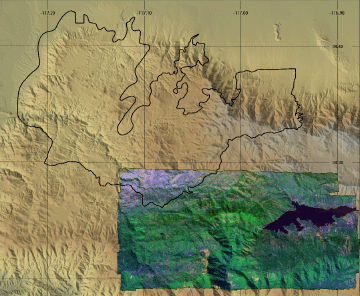

Image 2: Willow Fire perimeter
Black polygon shows the perimeter of the 1999 Willow Fire. |
Click on the image above to view a larger ( JPEG) image
(opens a new browser window) |
|
|

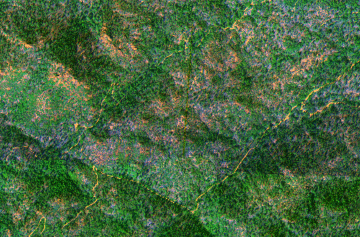

Image 3: Pre-fire false-color mosaic
Example of area from 2006 survey flight. Compare to image below.
|
Click on the image above to view a larger JPEG image
(opens a new browser window) |
|
|
Image 4: Post-fire false-color mosaic
Example of area from 2007 fire-mapping flight. Compare to image above. |
Click on the image above to view a larger ( JPEG image
(opens a new browser window) |
|
|
Burned Area
|
|
