Fire
Imaging |
|
Piru
Fire, Ventura County
23 October 2003
As viewed by the FireMapper
Thermal-Imaging Radiometer
Images were collected from the PSW Airborne
Sciences Aircraft and disseminated in part by satellite
communications in near-real time. FireMapper measures the
radiance of emitted thermal-infrared light, which readily
penetrates smoke. False-color images shown here depict
the apparent surface temperature (in Celsius) as estimated
from
radiance and a simple black-body model. Warmer tones represent
recent or active combustion; areas of gray are cooling
ash
or warm bare ground (see chart below). Low temperatures
of unburned forest and cool ground are shown in green.
Images have been geographically referenced. Vertical exaggeration
in 3-d views is 1.5 to one unless otherwise noted.
|
|
|

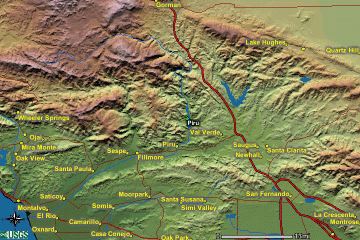

Location Map
Piru fire (courtesy of
wildfire.cr.usgs.gov/ca_geomac). Active fires are labeled in
white. |
Click on the image above to view a larger JPEG image
|

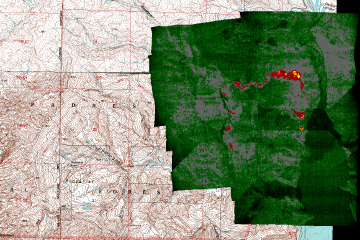

Fire Map
|
Click on the image above to view a larger JPEG image |
Fire Imagery
|
The following color-coded images depict apparent ground surface temperatures
in Celsius. Roads, streams, and the text in the background are from
a 1:24,000 topographic map.
|
|
|

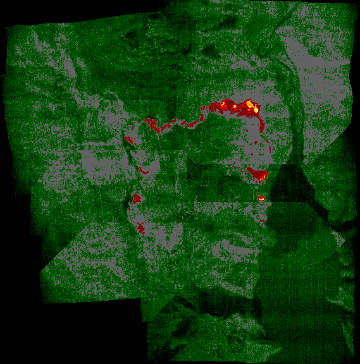

Image 1:
Ground surface temperatures as viewed from above at 11.9
micrometers wavelength on 23 October 2003, between 6:05
and 6:10 PM PDT.
|
Click on the image above to view a larger JPEG image |
|
|
Image 2:
Download link for geoTIFF zip file.
|
Click on the image above to download the zip file |
|
|

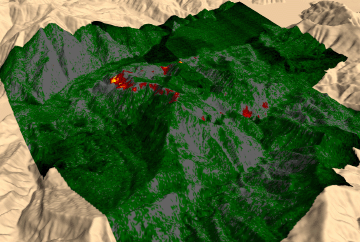

Image 3:
Topographic view as seen from the northwest of Image 1.
|
Click on the image above to view a larger JPEG image
|
|
|
|
|
|
FireMapper has
been developed through a Research Joint Venture with Space Instruments,
Inc., and support from the National Fire Plan, Forest Service International
Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency
for International Development.
