Rough Draw
Fire, Sweet Grass County, MT
19 August 2003
As viewed by the FireMapper
Thermal-Imaging Radiometer
Images were collected from the PSW Airborne
Sciences Aircraft and disseminated in part by satellite
communications in near-real time. FireMapper measures the
radiance of emitted thermal-infrared light, which readily
penetrates smoke. False-color images shown here depict
the apparent surface temperature (in Celsius) as estimated
from
radiance and a simple black-body model. Warmer tones represent
recent or active combustion; areas of gray are cooling
ash
or warm bare ground (see chart below). Low temperatures
of unburned forest and cool ground are shown in green.
Images have been geographically referenced. Vertical exaggeration
in 3-d views is 1.5 to one unless otherwise noted.
|
|
|
Location Map
Rough Draw Fire (courtesy of
www.geomac.gov). Active fires are labeled in white. |
Click on the image above to view a larger JPEG image
|
|
|
Fire Imagery
|
The following color-coded images depict apparent ground surface temperatures
in Celsius. Roads, streams, and the text in the background are from
a 1:24,000 topographic map.
|
|
|

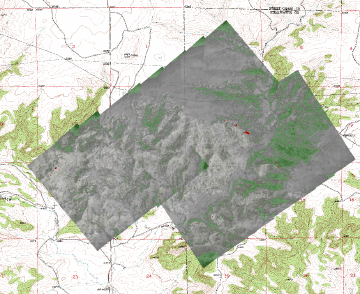

Image 1:
Ground surface temperatures as viewed from above at 11.9
micrometers wavelength on 19 August 2003, between 18:44
and 18:49 UMT.
|
Click on the image above to view a larger JPEG image |
Image 2:
Image from above, on a shaded relief map.
|
Click on the image above to view a larger JPEG image |
Image 3:
Topographic view as seen from the northeast of Image 1. |
Click on the image above to view a larger JPEG image
|
|
|
|
|
|
|
Narrative
from the INCIDENT MANAGEMENT SITUATION REPORT
TUESDAY AUGUST 19, 2003 - 0800 MDT. (Courtesy of www.nifc.gov.)
|
ROUGH DRAW COMPLEX, Gallatin National Forest.
A Type 1 Incident Management Team
(Oltrogge) is assigned. This complex, five miles southeast
of Livingston, MT, is composed of the
Rough Draw, Slippery Rock, Speculator 1, Speculator 2, Elbow,
Brundage and Hawley fires.
Isolated group torching and short range spotting were observed
on the Rough Draw and Slippery
Rock fires. No activity was observed on the other fires.
Two new fires (Elbow and Brundage) were
added to the complex. Structure protection is in place for
18 residences and one commercial
property.
|
