Fire Science: Wildfire Monitoring and Prediction
|
|
Fire Imaging: Bar Complex |
|
|
|
Pigeon Fire, Shasta-Trinity NF, CA
5 September 2006
As viewed by the FireMapper
Thermal-Imaging Radiometer
|
Click on the image above to view a larger Zoomify(JPEG) image
(opens a new browser window)

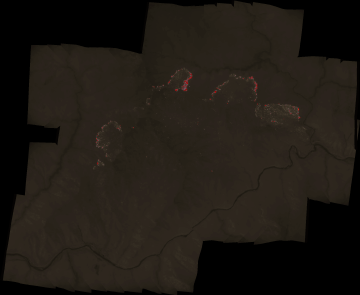

Current Image: Thermal mosaic
Ground surface temperatures as viewed from above at 8-12 micrometers wavelength on 5 September 2006, between 18:52 and 19:19 PDT.
|
|
|
Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).
Purple is used to show very warm ground that may or may not be fire-related. Purple pixels immediately adjacent to red pixels can be interpreted to be cooling ash; purple pixels far from any red pixels may be interpreted as solar heating on bare rock.
|
Click on the image above to view a larger JPEG image
(opens a new browser window) |
|
|
|
|
|
|
FireMapper has
been developed through a Research Joint Venture with Space Instruments,
Inc., and support from the National Fire Plan, Forest Service International
Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency
for International Development.
|
