Fire Science: Wildfire Monitoring and Prediction
|
|
Fire Imaging: Slide Fire |
|
|
|
Slide Fire, San Bernardino County, CA
16:23 PDT 25 October 2007
As viewed by the FireMapper Thermal-Imaging Radiometer
|
Click on the image above to view a larger Zoomify image
or view the JPEG version
(opens a new browser window)
Ground surface temperatures as viewed from above at 8-12 micrometers wavelength on 25 October 2007, between 16:23 and 16:43 PDT.
|
|
|

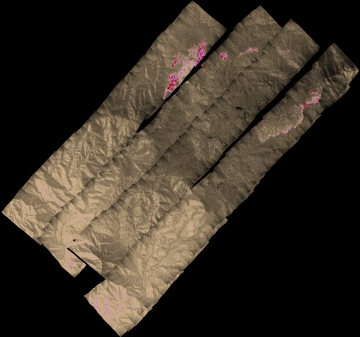

Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).
Purple is used to show cooling ash but could be associated with bare ground away from fire.
|
Click on the image above to view a larger JPEG image
(opens a new browser window) |
|
|
Firelines
If link doesn't open in Google Earth or Google Maps, try saving the file to disk and running doc.kml from there. |
|
|
|
|
|
Weather conditions at time of data collection :
Rock Camp station RCPC1 from NOAA ROMAN system. |
Past Weather Conditions for RCPC1
Observations prior to selected time: October 25, 2007 - 17:00 PDT
Weather Conditions at October 25, 2007 - 16:02 PDT
|
16:02 |
24 Hour Max |
24 Hour Min |
Temperature |
72.0° F |
75.0 at 13:02 |
56.0 at 21:02 |
Dew Point |
18.5° F |
23.3 at 3:02 |
16.2 at 12:02 |
Relative Humidity |
13% |
27 at 21:02 |
11 at 12:02 |
Wind Speed |
8 mph from SSE |
9 at 15:02 |
1 at 1:02 |
Wind Gust |
14 mph |
16 at 11:02 |
4 at 21:02 |
Solar Radiation |
392.0 W/m*m |
609.0 at 12:02 |
0.0 at 20:02 |
Battery voltage |
13.80 volt |
14.00 at 12:02 |
12.50 at 7:02 |
|
|
|
FireMapper has
been developed through a Research Joint Venture with Space Instruments,
Inc., and support from the National Fire Plan, Forest Service International
Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency
for International Development.
|
