Fire Science

Wildfire Monitoring and Prediction
Fire Imaging
Black Mountain Fire, Missoula County, MT
16 August 2003


As viewed by the FireMapper™ Thermal-Imaging Radiometer

Images were collected from the PSW Airborne Sciences Aircraft and disseminated in part by satellite communications in near-real time. FireMapper measures the radiance of emitted thermal-infrared light, which readily penetrates smoke. False-color images shown here depict the apparent surface temperature (in Celsius) as estimated from radiance and a simple black-body model. Warmer tones represent recent or active combustion; areas of gray are cooling ash or warm bare ground (see chart below). Low temperatures of unburned forest and cool ground are shown in green. Images have been geographically referenced. Vertical exaggeration in 3-d views is 1.5 to one unless otherwise noted.



Location Map

Northern Rocky Mts. (courtesy of
www.geomac.gov). Active fires are labeled in white.


Click on the image above to view a larger JPEG image

Fire Imagery


The following color-coded images depict apparent ground surface temperatures in Celsius. Roads, streams, and the text in the background are from a 1:100,000 topographic map.

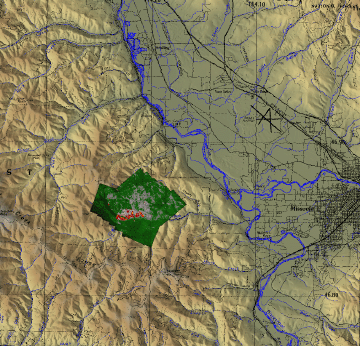

Image 1:
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength on 16 August 2003, at 15:58 MDT.


Click on the image above to view a larger JPEG image
Image 2:
Topographic view as seen from the west of Image 1.

Click on the image above to view a larger JPEG image

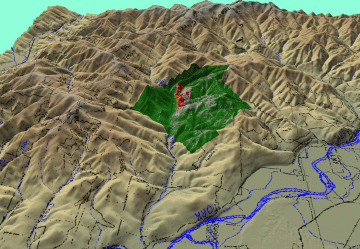

Image 3:
Topographic view as seen from the east of Image 1.



Click on the image above to view a larger JPEG image
(opens a new browser window)



Narrative from the INCIDENT MANAGEMENT SITUATION REPORT
SATURDAY AUGUST 16, 2003 - 0800 MDT. (Courtesy of www.nifc.gov.)

BLACK MOUNTAIN 2, Southwestern Land Office, Montana Department of Natural Resources &
Conservation. A Type 2 Incident Management Team (Dietrich) is assigned. This fire is in mixed
conifer, understory and grass, nine miles west of Missoula, MT. Torching and short range spotting was observed. Structure protection is in place for 650 residences.


Links


Archives of past fires: 2008 2007 2006 2005 2004 2003 2002 2001


Forest mapping: 2008 2007 2006 2005 2004 2003 2002 2001


FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools- image analysis software: ftp downloads page

For Further Information: contact Dr. Philip J. Riggan



FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.
