Fire Science: Wildfire Monitoring and Prediction


Fire Imaging: Angel Fire
Angel Fire, San Diego County, CA
13:22 PDT 16 September 2007

As viewed by the FireMapper™ Thermal-Imaging Radiometer


Click on the image above to view a larger JPEG version
(opens a new browser window)

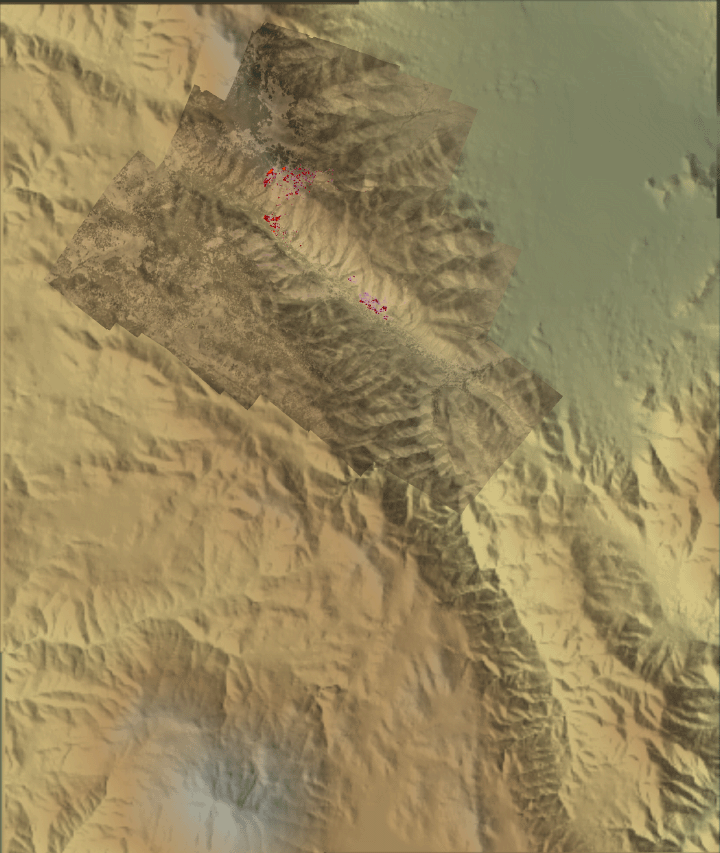

Current Image: Thermal mosaic
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength on 16 September 2007, between 13:22 and 13:33 PDT.



Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).


Purple is used to show cooling ash but could be associated with bare ground away from fire.


Click on the image above to view a larger JPEG image
(opens a new browser window)







Firelines







Weather conditions at time of data collection :
from NOAA ROMAN system.

Past Weather Conditions for JULC1
Observations prior to selected time: September 16, 2007 - 14:00 PDT
Weather Conditions at September 16, 2007 - 13:14 PDT


13:14 24 Hour Max 24 Hour Min
Temperature 77.0° F 87.0 at 14:14 55.0 at 5:14
Dew Point 28.8° F 36.1 at 16:14 8.0 at 7:14
Relative Humidity 17% 29 at 20:14 12 at 7:14
Wind Speed 11 mph from W 11 at 13:14 4 at 20:14
Wind Gust 24 mph 24 at 13:14 7 at 21:14
Solar Radiation 980.0 W/m*m 983.0 at 12:14 0.0 at 19:14
Fuel Temperature 92.0° F 103.0 at 14:14 50.0 at 5:14
10 hr Fuel Moisture 6 gm 7 at 21:14 6 at 14:14
Battery voltage 14.20 volt 14.20 at 10:14 12.60 at 5:14

Archives of past fires: 2008 2007 2006 2005 2004 2003 2002 2001


Forest mapping: 2008 2007 2006 2005 2004 2003 2002 2001


FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools- image analysis software: ftp downloads page

For Further Information: contact Dr. Philip J. Riggan



FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.
