Fire Science: Wildfire Monitoring and Prediction

Fire Imaging: Butler 2 Fire
Butler 2 Fire, San Bernardino County, CA
14:56 PDT 12 September 2007

As viewed by the FireMapper™ Thermal-Imaging Radiometer

Click on the image above to view a larger Zoomify image
or view the JPEG version
(opens a new browser window)

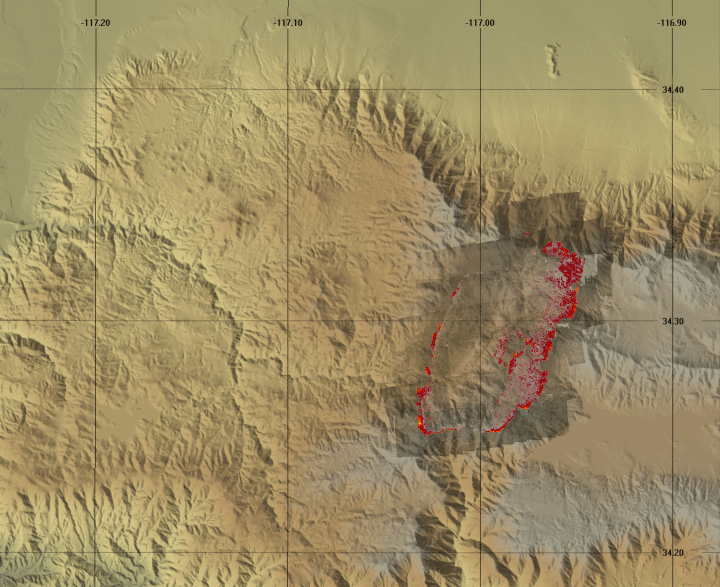

Current Image: Thermal mosaic
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength on 15 September 2007, between 14:56 and 15:32 PDT.

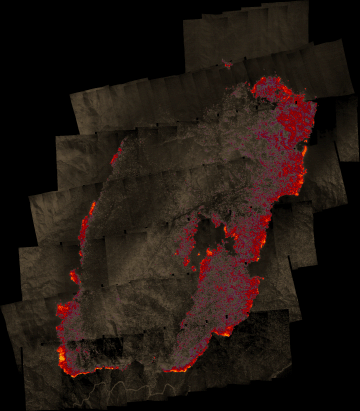

Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).

Purple is used to show cooling ash but could be associated with bare ground away from fire.

Click on the image above to view a larger JPEG image
(opens a new browser window)

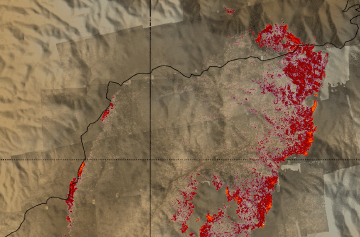

Image 2: Willow Fire perimeter
Black polygon shows the perimeter of the 1999 Willow Fire.

Click on the image above to view a larger (JPEG image
(opens a new browser window)






Weather conditions at time of data collection :
from NOAA ROMAN system.

Past Weather Conditions for FWSC1
Observations prior to selected time: September 15, 2007 - 15:00 PDT
Weather Conditions at September 15, 2007 - 14:20 PDT

14:20 24 Hour Max 24 Hour Min
Temperature 71.0° F 71.0 at 12:20 48.0 at 4:20
Dew Point -7.9° F 14.8 at 19:20 -32.5 at 1:20
Relative Humidity 4% 18 at 19:20 2 at 0:20
Wind Speed 9 mph from SSW 11 at 15:20 2 at 18:20
Wind Gust 21 mph 23 at 11:20 7 at 20:20
Solar Radiation 1086.0 W/m*m 1132.0 at 13:20 0.0 at 20:20
Fuel Temperature 86.0° F 87.0 at 13:20 43.0 at 4:20
10 hr Fuel Moisture 6 gm 7 at 19:20 6 at 14:20
Battery voltage 13.70 volt 13.70 at 15:20 12.50 at 6:20
