Fire Science: Wildfire Monitoring and Prediction


Fire Imaging: Corral Fire

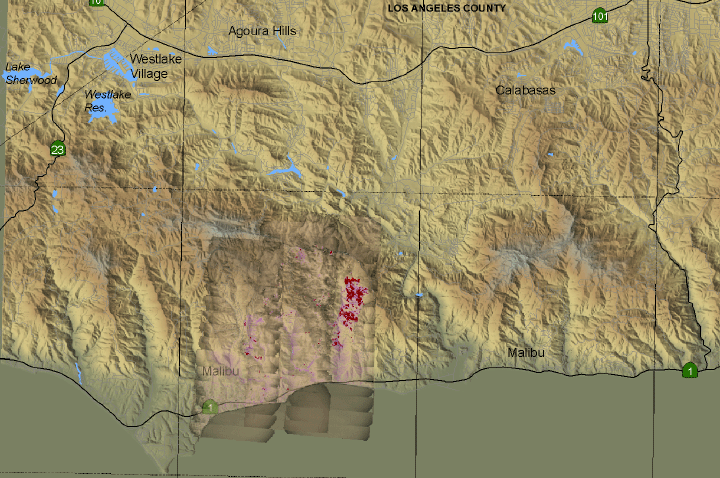

Corral Fire, Los Angeles County, CA
17:47 PST 24 November 2007


As viewed by the FireMapper™ Thermal-Imaging Radiometer


Click on the image above to view a larger Zoomify image
or view the JPEG version
(opens a new browser window)

Ground surface temperatures as viewed from above at 8 to 12 micrometers wavelength on 24 November 2007, between 17:47 and 17:59 PST.

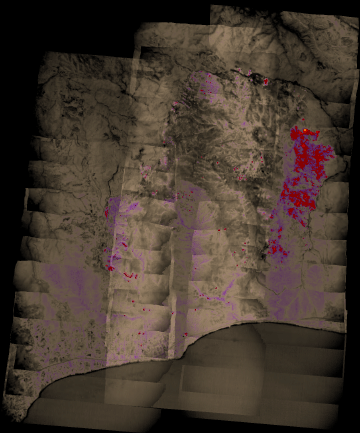

Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).


Purple is used to show cooling ash but could be associated with bare ground away from fire.


Click on the image above to view a larger JPEG image
(opens a new browser window)



Firelines









Weather conditions at time of data collection :
Malibu Canyon station MBUC1 from NOAA ROMAN system.

Past Weather Conditions for MBUC1
Observations prior to selected time: November 24, 2007 - 06:00 PST
Weather Conditions at November 24, 2007 - 5:36 PST


5:36 24 Hour Max 24 Hour Min
Temperature 60.0° F 65.0 at 13:36 48.0 at 6:36
Dew Point -7.4° F 48.6 at 12:36 -7.4 at 5:36
Relative Humidity 6% 91 at 6:36 6 at 5:36
Wind Speed 28 mph from NNE 28 at 4:36 1 at 7:36
Wind Gust 49 mph 50 at 16:36 3 at 6:36
Pressure 28.30 in 28.33 at 23:36 28.23 at 14:36
Sea Level Pressure 29.95 in 29.99 at 0:36 29.85 at 14:36
Altimeter 29.97 in 30.00 at 23:36 29.89 at 14:36
Solar Radiation 0.0 W/m*m 643.0 at 11:36 0.0 at 6:36
Fuel Temperature 61.0° F 73.0 at 11:36 44.0 at 6:36
10 hr Fuel Moisture 7 gm 29 at 6:36 7 at 4:36
Battery voltage 12.50 volt 14.30 at 10:36 12.40 at 6:36

Archives of past fires: 2008 2007 2006 2005 2004 2003 2002 2001


Forest mapping: 2008 2007 2006 2005 2004 2003 2002 2001


FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools- image analysis software: ftp downloads page

For Further Information: contact Dr. Philip J. Riggan



FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.
