Fire Science: Wildfire Monitoring and Prediction

Fire Imaging: Slide Fire
Slide Fire & Grass Valley Fire, San Bernardino County, CA
15:39 PDT 24 October 2007

As viewed by the FireMapper™ Thermal-Imaging Radiometer

Click on the image above to view a larger Zoomify image
or view the JPEG version
(opens a new browser window)

Ground surface temperatures as viewed from above at 8-12 micrometers wavelength on 24 October 2007, between 15:39 and 16:46 PDT.

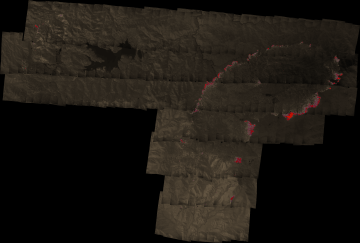

Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).

Purple is used to show cooling ash but could be associated with bare ground away from fire.

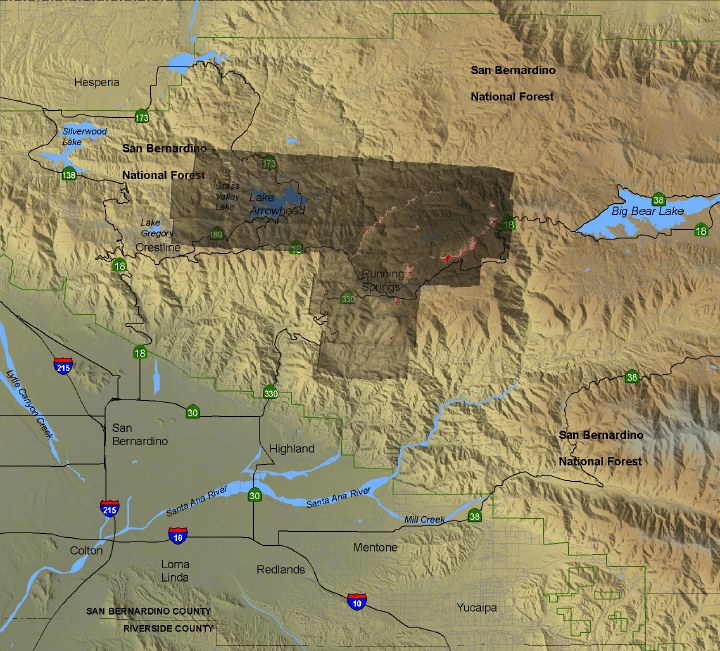

Click on the image above to view a larger JPEG image
(opens a new browser window)




If link doesn't open in Google Earth or Google Maps, try saving the file to disk and running doc.kml from there.



Weather conditions at time of data collection :
Rock Camp station RCPC1 from NOAA ROMAN system.

Past Weather Conditions for RCPC1
Observations prior to selected time: October 24, 2007 - 17:00 PDT
Weather Conditions at October 24, 2007 - 16:02 PDT

16:02 24 Hour Max 24 Hour Min
Temperature 73.0° F 74.0 at 14:02 51.0 at 6:02
Dew Point 21.0° F 25.4 at 4:02 21.0 at 16:02
Relative Humidity 14% 35 at 2:02 14 at 16:02
Wind Speed 7 mph from WNW 9 at 17:02 2 at 2:02
Wind Gust 12 mph 21 at 17:02 5 at 2:02
Solar Radiation 503.0 W/m*m 692.0 at 13:02 0.0 at 20:02
Battery voltage 14.00 volt 14.20 at 12:02 12.50 at 6:02

Archives of past fires: 2008 2007 2006 2005 2004 2003 2002 2001

Forest mapping: 2008 2007 2006 2005 2004 2003 2002 2001

FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools- image analysis software: ftp downloads page

For Further Information: contact Dr. Philip J. Riggan


FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.
