Fire Science

Thermal mapping


Norris Geyser Basin in Yellowstone NP
on the night of October 11, 2006

As viewed by the FireMapper™ system
in Thermal-Infrared light

Click on the image above to view a larger Zoomify (JPEG) image with 2 meter resolution
(opens a new browser window)

Images were collected from the PSW Airborne Sciences Aircraft flying over the area of the Norris Geyser Basin at 18:10 MDT.

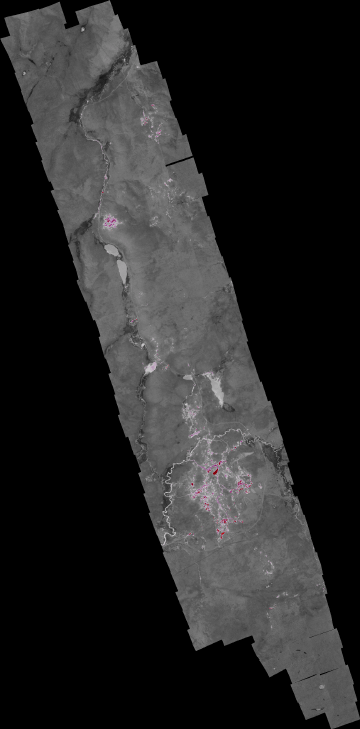

Image 1:
Image mosaic from Norris Geyser Basin.

The mean surface temperature was just above freezing, 30 C is the break between the purple and the dark red and 75 C is the top of the red scale.

Download this image as a 2 meter-resolution TIFF.

Click on the image above to view the 6-meter resolution image
(opens a new browser window)


Weather conditions at time of data collection :
from NOAA ROMAN system.

Observations prior to selected time: October 11, 2006 - 18:00 MDT
Weather Conditions at October 11, 2006 - 17:10 MDT
17:10 24 Hour Max 24 Hour Min
Temperature 43.0° F 45.0 at 13:10 32.0 at 23:10
Dew Point 26.1° F 27.2 at 6:10 22.7 at 12:10
Relative Humidity 51% 79 at 6:10 45 at 13:10
Wind Speed 3 mph from WSW 12 at 15:10 0 at 23:10
Wind Gust 23 mph 26 at 14:10 8 at 21:10
Solar Radiation 125.0 W/m*m 784.0 at 11:10 0.0 at 19:10
Fuel Temperature 44.0° F 52.0 at 13:10 31.0 at 22:10
10 hr Fuel Moisture 15 gm 16 at 18:10 15 at 13:10
Battery voltage 13.50 volt 13.60 at 11:10 12.60 at 6:10

Precipitation accumulated since midnight: 0.00", in 24 hours: 0.00"

Observation Time: 10/11/06 @ 18:40 MDT Elevation: 7166 ft.
For more info: BURRO HILL (ERAW4) OK
Temperature: 44 °F
Dew Point: 25 °F
Humidity: 46 %
Wind: NW at 6 MPH
Peak Gust: 20 MPH

24 Hour Max/Min Events
Max Temperature: 54 °F
Min Temperature: 33 °F
Max RH: 88 %
Min RH: 38 %
Max Dew Point: 32 °F
Min Dew Point: 25 °F
Max Gust: 22 MPH


FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools image analysis software ftp downloads page

For Further Information: contact Dr. Philip J. Riggan


FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.

Disclaimer: Trade names, commercial products, and enterprises are mentioned solely for information. No endorsement by the U.S. Department of Agriculture is implied.
