Fire Science: Wildfire Monitoring and Prediction

Fire Imaging: Zaca Fire
Zaca Fire, Santa Barbara County, CA
20:40 PDT 7 August 2007

As viewed by the FireMapper™ Thermal-Imaging Radiometer

Click on the image above to view a larger Zoomify image
or view the JPEG version
(opens a new browser window)

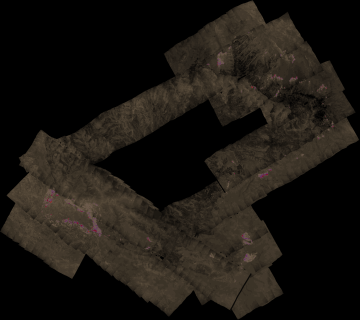

Current Image: Thermal mosaic
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength on 7 August 2007, between 20:40 and 21:55 PDT.


Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).

Purple is used to show cooling ash but could be associated with bare ground away from fire.

Click on the image above to view a larger JPEG image
(opens a new browser window)


Wind field and firelines
Forecast wind data for 2100 local time shown over thermal data.
(SBARG forecast from UCSB ICESS




Weather conditions at time of data collection :
from NOAA ROMAN system.
Past Weather Conditions for FGMC1
Observations prior to selected time: August 07, 2007 - 22:00 PDT
Weather Conditions at August 7, 2007 - 21:14 PDT

21:14 24 Hour Max 24 Hour Min
Temperature 59.0° F 72.0 at 13:14 52.0 at 1:14
Dew Point 45.1° F 49.5 at 16:14 36.6 at 7:14
Relative Humidity 60% 79 at 3:14 39 at 9:14
Wind Speed 1 mph from W 5 at 15:14 0 at 22:14
Wind Gust 4 mph 12 at 16:14 0 at 22:14
Solar Radiation 0.0 W/m*m 958.0 at 13:14 0.0 at 22:14
Fuel Temperature 57.0° F 88.0 at 14:14 48.0 at 1:14
10 hr Fuel Moisture 9 gm 13 at 3:14 7 at 15:14
Battery voltage 12.70 volt 13.10 at 9:14 12.50 at 5:14

Archives of past fires: 2008 2007 2006 2005 2004 2003 2002 2001

Forest mapping: 2008 2007 2006 2005 2004 2003 2002 2001

FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools- image analysis software: ftp downloads page

For Further Information: contact Dr. Philip J. Riggan


FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.
