Fire Science: Wildfire Monitoring and Prediction

Fire Imaging: Zaca Fire

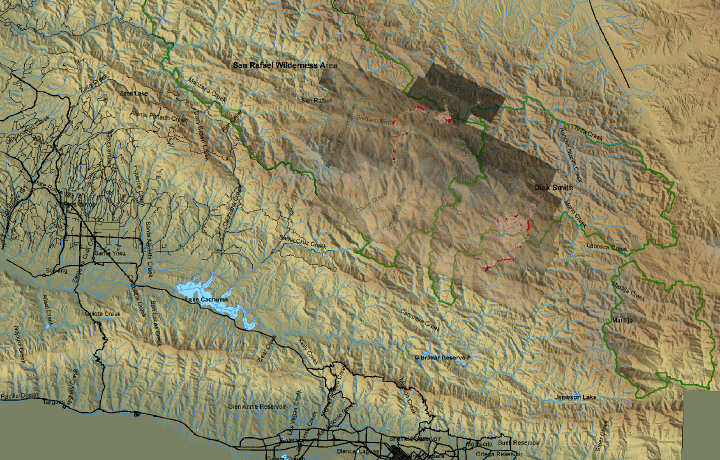

Zaca Fire, Santa Barbara County, CA
15:40 PDT 14 August 2007

As viewed by the FireMapper™ Thermal-Imaging Radiometer

Click on the image above to view a larger Zoomify image
or view the JPEG version
(opens a new browser window)

NOTE: This imagery does not include some of the recently active fireline on the southern perimeter.

Current Image: Thermal mosaic
Ground surface temperatures as viewed from above at 11.9 micrometers wavelength on 14 August 2007, between 15:40 and 16:41 PDT.


Image 1: Thermal Mosaic
Plan view of fire. Warmer tones represent recent or active combustion; areas of light gray are cooling ash or warm bare ground and the low temperatures of unburned forest and cool ground are shown in darker gray (see chart above).

Purple is used to show cooling ash but could be associated with bare ground away from fire.

Click on the image above to view a larger JPEG image
(opens a new browser window)


Wind field and firelines
Forecast wind data for 1600 local time shown over thermal data.
(SBARG forecast from UCSB ICESS




Weather conditions at time of data collection :
from NOAA ROMAN system.
Past Weather Conditions for FGMC1
Observations prior to selected time: August 14, 2007 - 17:00 PDT
Weather Conditions at August 14, 2007 - 16:14 PDT

16:14 24 Hour Max 24 Hour Min
Temperature 86.0° F 92.0 at 15:14 71.0 at 0:14
Dew Point 50.0° F 50.0 at 16:14 30.2 at 4:14
Relative Humidity 29% 29 at 16:14 17 at 11:14
Wind Speed 3 mph from S 3 at 12:14 0 at 19:14
Wind Gust 10 mph 10 at 17:14 0 at 3:14
Solar Radiation 650.0 W/m*m 926.0 at 13:14 0.0 at 20:14
Fuel Temperature 99.0° F 107.0 at 15:14 65.0 at 0:14
10 hr Fuel Moisture 5 gm 6 at 0:14 5 at 15:14
Battery voltage 13.00 volt 13.00 at 17:14 12.50 at 6:14

Archives of past fires: 2008 2007 2006 2005 2004 2003 2002 2001

Forest mapping: 2008 2007 2006 2005 2004 2003 2002 2001

FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools- image analysis software: ftp downloads page

For Further Information: contact Dr. Philip J. Riggan


FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.
