Piper Navajo remote sensing aircraft

Fire Science: Wildfire Monitoring and Prediction

Forest Mapping:




Sierra de San Pedro Martir, Baja California Norte
17 September 2002


As viewed by the FireMapper™ Thermal-Imaging Radiometer

Images were collected from the PSW Airborne Sciences Aircraft

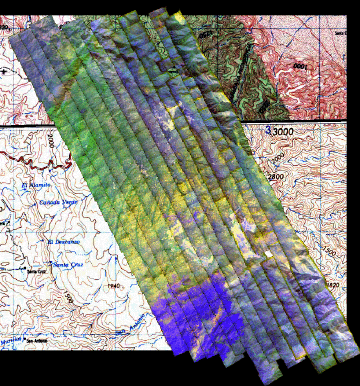

Location Map A

This image is a portion of a 1:250,000 topo map with an overlayed mosaic.

North is at the top.

Flight path is from NW to SE.



Click on the image above to view a larger JPEG image

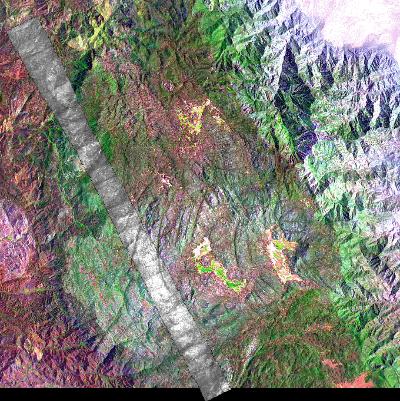

Location Map B

This image is a portion of a Landsat TM 541 image with an overlayed grayscale mosaic of 32 images from Pass 6.

North is at the top.

Flight path is from NW to SE.



Click on the image above to view a larger JPEG image

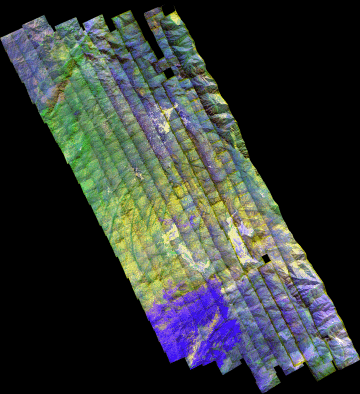

Image 1:
This mosaic of 13 transects can be browsed at 6 meters/pixel resolution. (Original data was collected at 1.5 m/pixel.)

The va (visible red band) is shown in red; vb (near-IR band) is shown in green; ir4 (wide-band thermal IR) is shown in blue.




Click on the image above to view the larger Zoomify image

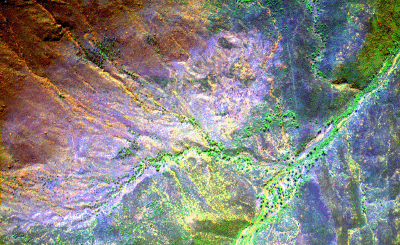

Image 2:
The va (visible red band) is shown in red; vb (near-IR band) is shown in green; ir4 (wide-band thermal IR) is shown in blue.




Click on the image above to view a larger JPEG image

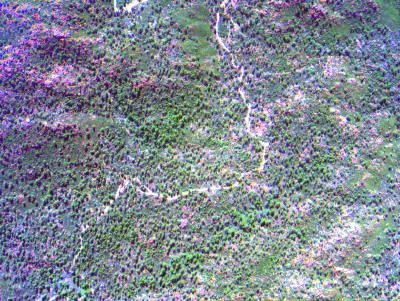

Image 3:
The va (visible red band) is shown in red; vb (near-IR band) is shown in green; NIR ( IR) is shown in blue.

This image is from the start of Pass 6, the first transect from the south.

Bare soil reflects in all bands, appearing white; bare rock is magenta.


Click on the image above to view a larger JPEG image

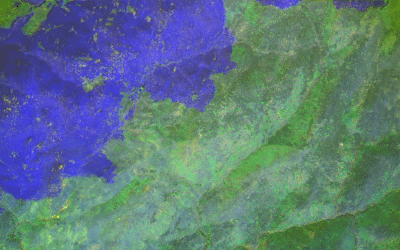

Image 4:
The va (visible red band) is shown in red; vb (near-IR band) is shown in green; ir4 (wide-band thermal IR) is shown in blue.

This image is from the start of Pass 11, the fourth transect from the south.

Fresh ash layer from a recent fire absorbs solar energy, radiating strong thermal IR (in blue).


Click on the image above to view a larger JPEG image

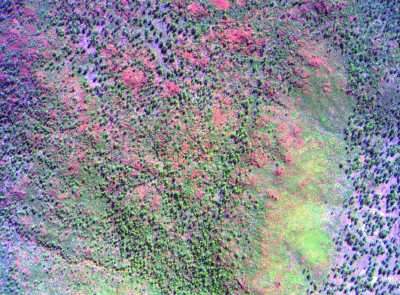

Image 5:
The va (visible red band) is shown in red; vb (near-IR band) is shown in green; NIR ( IR) is shown in blue.

This image is from the start of Pass 19, the ninth transect from the south.

Bare soil reflects in all bands, appearing white; bare rock is magenta.


Click on the image above to view a larger JPEG image

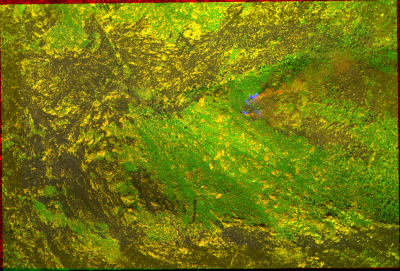

Image 6:
The va (visible red band) is shown in red; vb (near-IR band) is shown in green; ir4 (wide-band thermal IR) is shown in blue.

This image is from the start of Pass 10, the third transect from the south.

Active fire is bright in the thermal IR (blue) and visible (red) bands; smoke is red. Recently burned areas are dark in all bands.


Click on the image above to view a larger JPEG image

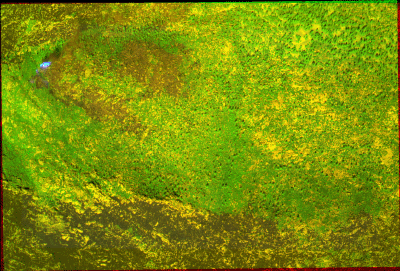

Image 6a:
The va (visible red band) is shown in red; vb (near-IR band) is shown in green; ir4 (wide-band thermal IR) is shown in blue.

This image is from the end of Pass 11, the fourth transect from the south.

Active fire is bright in the thermal IR (blue) and visible (red) bands; smoke is red. Recently burned areas are dark in all bands.


Click on the image above to view a larger JPEG image

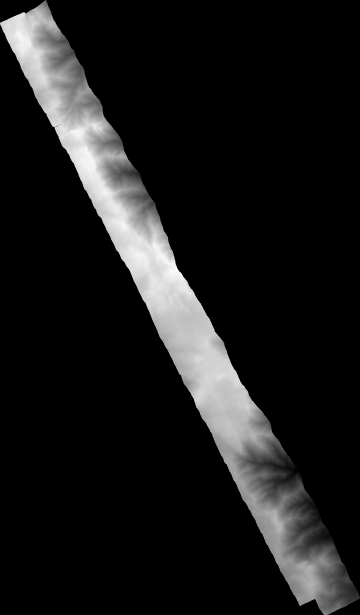

Image 7:
DTM (Digital Terrain Model) elevation map derived from our imagery. 20 meter interval; area modelled is covered by the last 2 transects on the northeast, over the most extreme relief in the area.


Click on the image above to view a larger JPEG image


Image 8:
Full-resolution view of a portion of the next-to-last transect on the northeast with 40 meter contours from the DTM.


Click on the image above to view a larger JPEG image


Links


Archives of past fires: 2008 2007 2006 2005 2004 2003 2002 2001


Forest mapping: 2008 2007 2006 2005 2004 2003 2002 2001


FireMapper™ Specifications: Instrument

FireMapper™ References: Publications

FireMapper™ Tools- image analysis software: ftp downloads page

For Further Information: contact Dr. Philip J. Riggan



FireMapper™ has been developed through a Research Joint Venture with Space Instruments, Inc., and support from the National Fire Plan, Forest Service International Programs, the U.S. Department of Agriculture, the Joint Fire Sciences Program, and the U.S. Agency for International Development.
