Piper Navajo remote sensing aircraft

Fire Science: Wildfire Monitoring and Prediction

Fire Imaging: Troy Fire

4 Pages of Thermal Imagery

Choose from links at left

Troy Fire, Cleveland National Forest
19 June 2002

As viewed by the FireMapper™ Thermal-Imaging Radiometer

Images were collected from the PSW Airborne Sciences Aircraft and disseminated in part by satellite communications in near-real time. FireMapper measures the radiance of emitted thermal-infrared light, which readily penetrates smoke. False-color images shown here depict the apparent surface temperature (in Celsius) as estimated from radiance and a simple black-body model. Warmer tones represent recent or active combustion; areas of gray are cooling ash or warm bare ground. Low temperatures of unburned forest and cool ground are shown in green. Images have been geographically referenced.



Map 1: Location

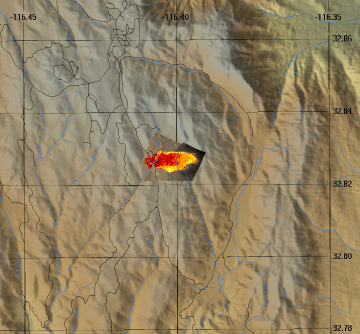

Plan view of fire shown on shaded relief map (DEM).

Local Area Map
for the Troy Fire (Google Maps)

Click on the image above to view a larger JPEG image
(opens a new browser window)



Map 2: Topo

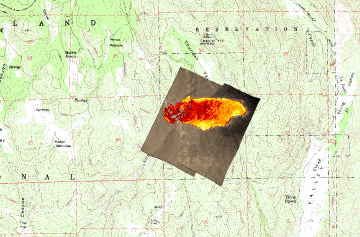

Plan view of fire shown on USGS 1:24k topographic map (DRG).

Click on the image above to view a larger JPEG image
(opens a new browser window)



Map 3: Elevation

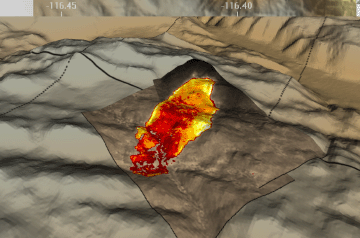

Topographic view from southwest.

View Troy Fire image as Google Earth overlay

Click on the image above to view a larger JPEG image
(opens a new browser window)


19 June maps

19 June (series A)

19 June (series B)

19 June (series C)

19 June (series D)


Overview (this page)

Passes 3 through 15

Passes 18 through 29

Passes 32 through 45

Passes 48 through 62
